In-Wall Wire Concealment in Westminster
TV Mounting Mark Westminster covers hiding TV wires in Westminster walls, with in-wall rated power kits and CL3-rated cables for the in-wall run, a paintable raceway where the wall cannot be opened and an electrician for anything that needs a new outlet.
Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.
Illustration
What may go inside a wall
Only parts rated for in-wall use go inside a wall. A standard power cord never does, because it is not built for it and can overheat or damage the wall. The legal way is an in-wall rated power relocation kit, which moves the outlet to the screen, or a new outlet installed by an electrician.
Fire blocks and stud bays
Horizontal blocks inside a wall (fire blocking) can stop a cable's path, and a cut to get past one is a bigger job than it looks. The installer checks the route with a small opening first. In plaster, cutting a wall open leaves a patch that rarely matches, which is one reason a raceway is often chosen in older rooms.

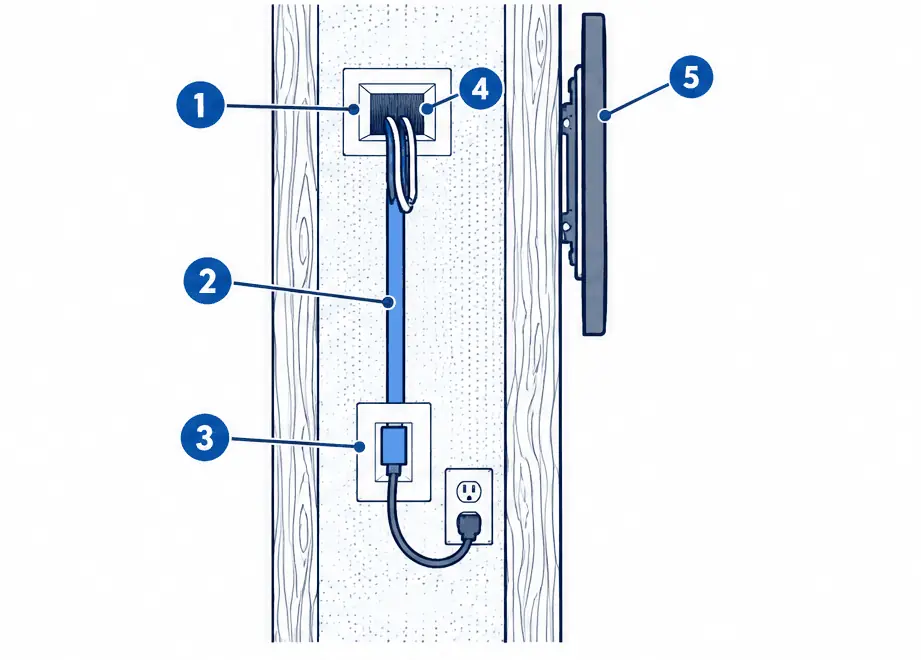

One kit, one existing outlet
An in-wall power kit has an inlet that plugs into the outlet already on the wall and a second outlet at the TV. It moves the plug location; it does not add a circuit. If there is no outlet at a workable distance, a new one is an electrician's job and priced separately.
What the numbers show
- Upper outlet plate The TV plugs into a recessed outlet plate right behind it.
- Rated cable Only a cable rated for in-wall use runs inside the wall.
- Lower inlet plate The inlet plate plugs into the outlet already there and does not add a circuit.
- Cable pass-through Signal cables pass through a brush-covered opening, in a CL3-rated lead.
- TV in front The TV hides the upper plate.
When the wall stays closed
In apartments, in townhome party walls and in plaster the owner wants to keep, a surface raceway is the cleaner answer. It is a slim channel fixed to the wall, painted the wall color, and it comes off later.
What the numbers show
- Raceway channel A slim base is fixed to the wall surface and the cords lie in it.
- Cables inside Signal cables and the TV's power cord end at an existing outlet; no new wiring is added.
- Paintable cover The cover snaps on and takes paint to match the wall.
- Straight run A vertical run from behind the TV to the outlet looks tidy and comes off later.
In-Wall Wire Concealment — common questions
Can the power cord run inside the wall?
No. A standard power cord never goes inside a wall; only an in-wall rated kit does.
Is a new outlet part of the mounting price?
No. A new outlet or circuit is electrical work for an electrician and is priced separately.
