TV Above a Fireplace in Westminster
TV Mounting Mark Westminster covers TV mounting above a fireplace in Westminster living rooms, where a brick, stone or plastered chimney wall takes masonry anchors, the heat decides how high the screen may sit and a pull-down arm brings it back down to the seats.
Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.
Illustration
What the chimney wall is made of
A fireplace wall in a house of this age can be brick, stone veneer, tile or plaster over masonry. Each takes a different fastener, and the first job is to find out which. Brick and block take masonry sleeve anchors set in the solid part of the unit, not in a joint; veneer is only a face, and the mount has to reach the structure behind it.
| Wall | Fastener | Care |
|---|---|---|
| Solid brick | Sleeve anchors into the brick | Kept off the mortar joints |
| Stone veneer | Longer anchors through to the structure | The veneer is not load-bearing |
| Plaster over masonry | Masonry anchors with the plaster drilled slowly | Plaster chips at the edge of a hole |

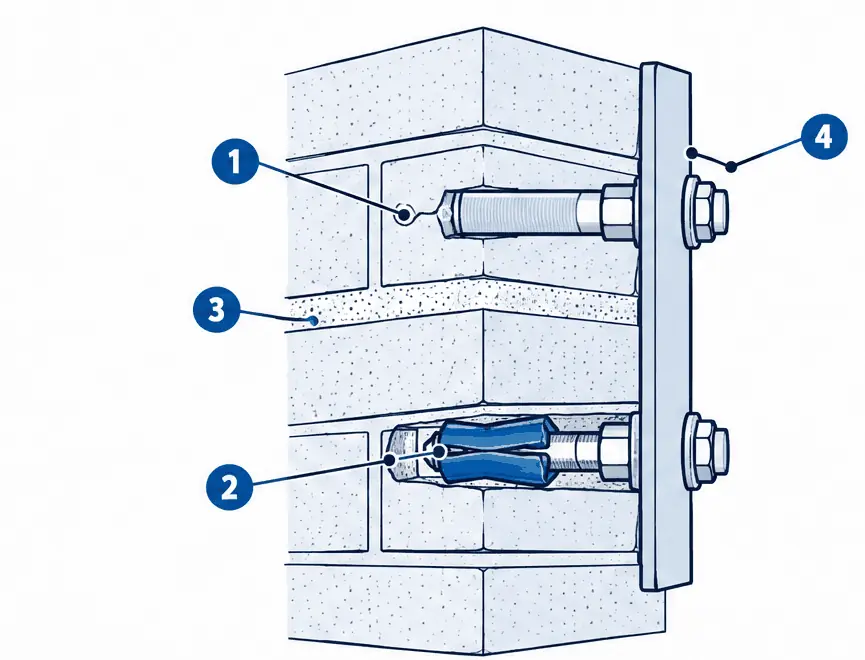

What the numbers show
- Hole above the joint The hole is drilled in the solid brick, clear of the mortar joint beside it.
- Expanded sleeve Tightening the bolt pulls the cone into the sleeve and spreads it against the brick.
- Mortar joint Mortar is softer than brick and crumbles under a load, so anchors stay out of it.
- Wall plate The plate sits flat on the brick face and carries the mount.
Heat above the firebox
Heat rises from a working fireplace and can reach the wall above the mantel. Many TV makers publish an operating temperature range, and the wall behind a firebox that is used often can exceed what a screen likes. A reading of the wall temperature with the fire going is the way to know. Gas fireplaces vent heat too, and a mantel shelf between the firebox and the TV helps deflect some of it.
A pull-down arm and the viewing height
A screen above a mantel often sits well over seated eye height, which strains the neck in a long movie. A pull-down mount parks the TV high and lowers it in front of the mantel when it is watched. It needs a wall behind it that can carry the arm's leverage, and room in front of the mantel for the swing.
What the numbers show
- Bracket in the framing The wall bracket is bolted into framing or masonry that can carry the leverage of the arms.
- Gas-spring arms The spring cylinders balance the weight, so the TV moves with a light pull.
- Parked position Up high, the TV sits farther from the firebox heat.
- Lowered position Pulled down and forward, the screen reaches seated eye level.
- Mantel clearance The swing has to clear the front edge of the mantel.
Wires without opening the chimney wall
Cutting into brick for cords is not a sensible job. A paintable raceway along the edge of the brick, or a power kit through the wall at one side, brings the cords to the outlet without touching the face of the masonry. Electrical work such as a new outlet is an electrician's job.
TV Above a Fireplace — common questions
Is it safe to put a TV above a fireplace?
It can be, when the wall above the mantel stays within the TV maker's operating temperature range. A pull-down arm that parks the screen higher and away from the heat is one answer.
Can the mount go straight into brick?
Yes, with masonry sleeve anchors set into the brick itself, not the mortar joint. Stone veneer needs longer anchors that reach the structure behind it.
